What is MU-MIMO?

What is MU-MIMO?

MU-MIMO, or Multi-User Multiple Input Multiple Output, is a technology used in modern wireless communication systems, particularly in Wi-Fi networks, to enhance the efficiency and capacity of wireless networks. Here's a detailed breakdown of what MU-MIMO is and how it works:

Introduction to MU-MIMO

MU-MIMO stands for Multi-User Multiple Input Multiple Output. It's an advanced form of MIMO technology, which itself stands for Multiple Input Multiple Output. Traditional MIMO allows multiple antennas at both the transmitter and receiver to send and receive more than one data signal simultaneously. MU-MIMO extends this concept to serve multiple users simultaneously, rather than just improving the connection for a single user.

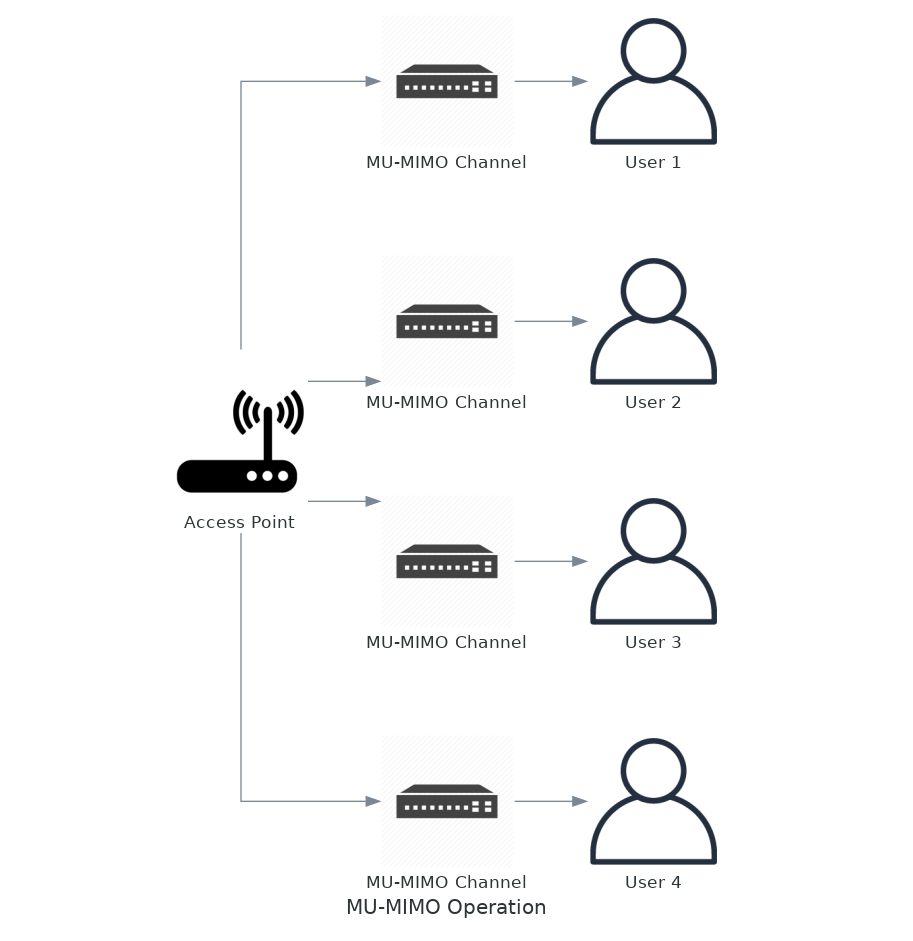

How MU-MIMO Works

  1. Multiple Antennas: MU-MIMO uses multiple antennas on the access point (AP) and the client devices. These antennas can transmit and receive multiple data streams concurrently.
  2. Spatial Streams: Each antenna can send a different data stream over the same frequency channel. This capability is leveraged to send data to multiple devices at the same time.
  3. Beamforming: MU-MIMO employs beamforming, a technique that directs the wireless signal toward a specific receiving device, rather than broadcasting in all directions. This helps in reducing interference and improving the signal strength and quality for each device.
  4. User Grouping: The access point groups devices based on their spatial characteristics. Devices that can be spatially separated (i.e., are in different physical locations or have different signal paths) can be served simultaneously.
  5. Resource Allocation: The access point dynamically allocates its resources (antennas and spatial streams) among the connected devices based on their data needs and channel conditions.

what is mu-mimo? portnox

Benefits of MU-MIMO

  1. Increased Capacity: MU-MIMO significantly increases the capacity of a wireless network by allowing multiple devices to communicate with the access point simultaneously. This is particularly beneficial in environments with many connected devices, such as homes, offices, and public hotspots.
  2. Improved Efficiency: By serving multiple users at the same time, MU-MIMO reduces the time each device spends waiting to transmit or receive data. This leads to lower latency and better overall network performance.
  3. Enhanced Throughput: The ability to send multiple data streams concurrently results in higher data throughput, meaning faster internet speeds and better performance for bandwidth-intensive applications like video streaming and online gaming.
  4. Better Spectrum Utilization: MU-MIMO makes more efficient use of the available spectrum, which is a limited and valuable resource in wireless communication.

MU-MIMO in Wi-Fi Standards

MU-MIMO is a key feature in the latest Wi-Fi standards:

  • Wi-Fi 5 (802.11ac): Introduced MU-MIMO, but it was limited to downlink (AP to device) communication.
  • Wi-Fi 6 (802.11ax): Improved upon MU-MIMO by supporting both uplink (device to AP) and downlink communication, allowing for even more efficient and robust connections.

Limitations and Challenges

  1. Device Compatibility: Both the access point and the client devices need to support MU-MIMO for it to be effective. Older devices that do not support MU-MIMO will not benefit from this technology.
  2. Complexity: Implementing MU-MIMO involves complex algorithms for beamforming, user grouping, and resource allocation, which can increase the cost and complexity of wireless equipment.
  3. Interference and Environment: The performance of MU-MIMO can be affected by physical obstructions, interference from other wireless devices, and the overall environment in which the network is deployed.

Conclusion

MU-MIMO is a powerful technology that enhances the capacity, efficiency, and performance of wireless networks. By allowing multiple devices to communicate simultaneously, MU-MIMO addresses the growing demand for high-speed, reliable wireless connectivity in today’s increasingly connected world. As Wi-Fi standards continue to evolve, MU-MIMO will play a crucial role in delivering better wireless experiences for users.

Does MU-MIMO present any security risks?

MU-MIMO itself, as a technology, does not inherently introduce new security risks beyond those already present in wireless networks. However, there are several factors related to MU-MIMO and its implementation that could potentially impact security. Here are some considerations:

Security Considerations with MU-MIMO

  1. Increased Complexity:
    • Complex Algorithms: MU-MIMO relies on complex algorithms for beamforming and user grouping. Flaws or vulnerabilities in these algorithms could potentially be exploited.
    • Firmware and Software: The increased complexity means more sophisticated firmware and software are required, which could introduce bugs or vulnerabilities if not properly secured and updated.
  2. Interference and Signal Leakage:
    • Beamforming: While beamforming focuses the signal towards specific devices, there is still potential for signal leakage, which could be intercepted by malicious actors if the communication is not properly encrypted.
  3. Device Compatibility and Legacy Devices:
    • Mixed Environments: In environments with a mix of MU-MIMO and non-MU-MIMO devices, older devices might not support the latest security protocols, potentially creating weak links in the network.
  4. User Grouping:
    • Spatial Separation: MU-MIMO groups devices based on spatial separation. If an attacker could manipulate their physical location or use directional antennas, they might be able to influence grouping mechanisms or interfere with other users' connections.

Mitigation Strategies

  1. Strong Encryption:
    • Use robust encryption protocols such as WPA3 to ensure that data transmitted over the wireless network is secure, regardless of the underlying MU-MIMO technology.
  2. Regular Firmware Updates:
    • Keep the firmware of all network devices, including routers and access points, up to date to protect against vulnerabilities and exploits that could be used to attack the network.
  3. Network Segmentation:
    • Implement network segmentation to isolate different types of devices and minimize the impact of a potential security breach. For example, separate guest networks from primary networks.
  4. Secure Configuration:
    • Ensure that wireless networks are configured securely, including strong passwords, disabling WPS (Wi-Fi Protected Setup), and restricting access to network management interfaces.
  5. Physical Security:
    • Maintain physical security of network equipment to prevent unauthorized access or tampering, which could compromise the network.
  6. Monitoring and Intrusion Detection:
    • Implement network monitoring and intrusion detection systems to identify and respond to suspicious activities promptly.

Conclusion

While MU-MIMO does not introduce unique security risks, the increased complexity and capabilities of MU-MIMO-enabled networks require careful consideration and robust security practices. By implementing strong encryption, keeping devices updated, and maintaining a vigilant approach to network security, the risks associated with MU-MIMO can be effectively managed.

Is MU-MIMO better than Wi-Fi 6?

MU-MIMO and Wi-Fi 6 are not directly comparable as they serve different functions within the realm of wireless networking. MU-MIMO is a specific technology that can be part of various Wi-Fi standards, including Wi-Fi 6. To understand how they relate and which might be considered "better" in different contexts, it's helpful to break down their roles and benefits:

MU-MIMO (Multi-User Multiple Input Multiple Output)

Key Features:

  1. Simultaneous Communication: Allows multiple devices to communicate with the access point at the same time, improving efficiency and capacity.
  2. Spatial Streams: Utilizes multiple antennas to create several spatial streams, serving multiple users simultaneously.
  3. Beamforming: Directs the signal to specific devices, enhancing signal strength and reducing interference.

Benefits:

  • Increases network capacity and efficiency.
  • Reduces latency by serving multiple devices concurrently.
  • Improves throughput, particularly in environments with many devices.

Wi-Fi 6 (802.11ax)

Key Features:

  1. Enhanced MU-MIMO: Supports both uplink and downlink MU-MIMO, allowing for more efficient two-way communication.
  2. OFDMA (Orthogonal Frequency Division Multiple Access): Divides channels into smaller sub-channels, enabling multiple devices to share the same channel simultaneously.
  3. BSS Coloring: Reduces interference by distinguishing between overlapping networks.
  4. Target Wake Time (TWT): Improves battery life of connected devices by scheduling communication times.
  5. Higher Throughput: Delivers faster speeds and better performance, especially in dense environments.

Benefits:

  • Improves overall network efficiency and capacity.
  • Reduces latency and increases throughput.
  • Enhances performance in environments with many connected devices.
  • Extends battery life of connected devices through better power management.

Comparison and Context

  1. Role in Wireless Networks:
    • MU-MIMO: A technology that improves how data is transmitted to multiple devices simultaneously within a network.
    • Wi-Fi 6: A comprehensive standard that includes various technologies, including enhanced MU-MIMO, to improve overall network performance.
  2. Performance:
    • MU-MIMO: Improves network performance by enabling simultaneous communication with multiple devices, thus increasing efficiency and capacity.
    • Wi-Fi 6: Offers a broader range of performance improvements, including enhanced MU-MIMO, OFDMA, BSS Coloring, and TWT, making it superior in overall performance compared to earlier Wi-Fi standards.
  3. Efficiency:
    • MU-MIMO: Specifically enhances efficiency in scenarios with multiple devices needing simultaneous access.
    • Wi-Fi 6: Enhances efficiency more comprehensively, benefiting from MU-MIMO as well as other technologies that optimize channel use and reduce interference.

Conclusion

MU-MIMO is a critical component of Wi-Fi 6, but Wi-Fi 6 encompasses much more than just MU-MIMO. Therefore, Wi-Fi 6 can be considered "better" in terms of offering a more holistic improvement to wireless networking, providing enhanced performance, efficiency, and capabilities across a range of scenarios. If you're choosing between a network that supports MU-MIMO alone and one that supports Wi-Fi 6, the latter would generally be the preferable option due to its comprehensive enhancements and future-proofing.

What are the disadvantages of MU-MIMO?

While MU-MIMO offers significant advantages in terms of network efficiency and capacity, it also comes with certain disadvantages and limitations. Here are some key drawbacks of MU-MIMO:

Disadvantages of MU-MIMO

  1. Device Compatibility:
    • Limited Support: Not all devices support MU-MIMO. Older devices or those with simpler Wi-Fi chipsets may not be able to take advantage of MU-MIMO capabilities.
    • Mixed Environments: In environments with both MU-MIMO and non-MU-MIMO devices, the benefits of MU-MIMO might not be fully realized.
  2. Complexity and Cost:
    • Implementation Complexity: The technology behind MU-MIMO is complex, requiring sophisticated algorithms for beamforming, user grouping, and interference management.
    • Higher Costs: This complexity can lead to higher costs for both access points and client devices that support MU-MIMO.
  3. Environmental Factors:
    • Physical Obstructions: MU-MIMO performance can be affected by physical barriers such as walls and furniture, which can disrupt signal paths and reduce effectiveness.
    • Interference: While MU-MIMO uses beamforming to direct signals, it can still suffer from interference from other wireless devices or networks, especially in crowded environments.
  4. Limited Uplink MU-MIMO:
    • Initial Limitations: Early implementations of MU-MIMO (such as those in Wi-Fi 5) primarily supported downlink MU-MIMO (from the access point to the devices) and did not support uplink MU-MIMO (from the devices to the access point).
    • Wi-Fi 6 Improvements: Wi-Fi 6 addresses this by including uplink MU-MIMO, but not all devices and access points may yet support Wi-Fi 6.
  5. User Grouping Efficiency:
    • Optimal Conditions Required: For MU-MIMO to be most effective, devices need to be sufficiently spatially separated. In some environments, optimal user grouping may not be possible, reducing the overall benefits.
    • Dynamic Environment Challenges: In highly dynamic environments where devices frequently move, maintaining efficient user grouping can be challenging.
  6. Beamforming Challenges:
    • Precision Required: Effective beamforming requires precise control and calibration. Imperfections in beamforming can lead to reduced performance and potential signal leakage.
    • Interference Management: While beamforming helps focus signals, managing interference between multiple simultaneous streams can still be challenging, particularly in environments with many overlapping networks.

Conclusion

MU-MIMO is a powerful technology that enhances the capacity and efficiency of wireless networks, especially in environments with many connected devices. However, its effectiveness can be limited by factors such as device compatibility, environmental conditions, and the complexity of implementation. Understanding these disadvantages is important for effectively deploying and managing MU-MIMO-enabled networks, and ensuring that the benefits outweigh the potential drawbacks.
